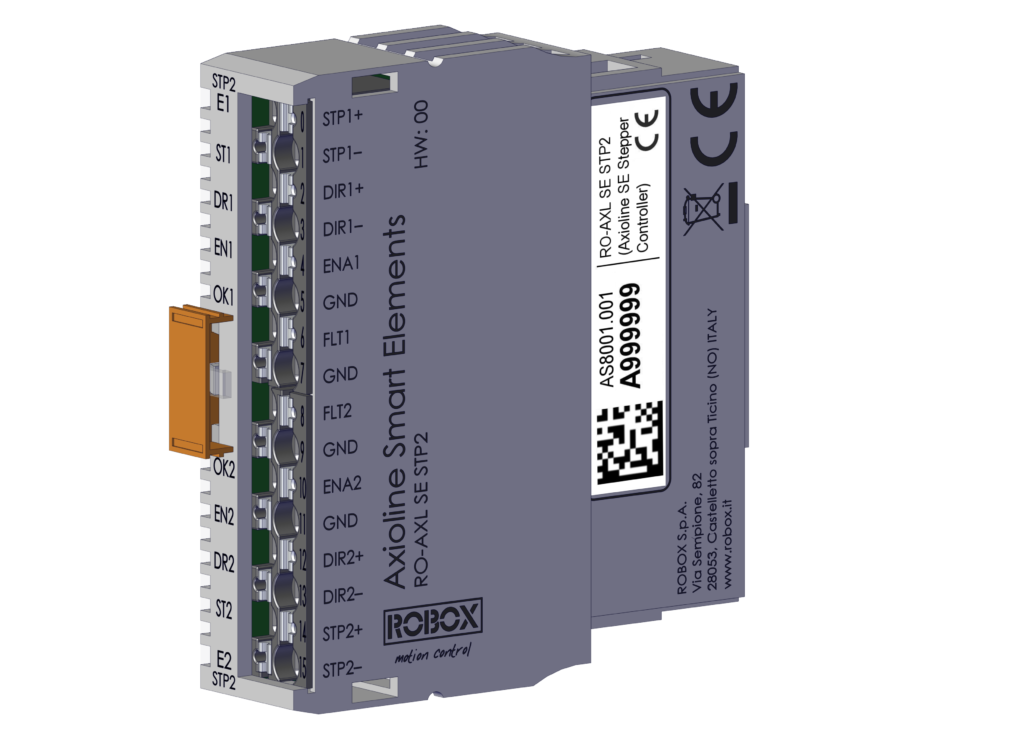

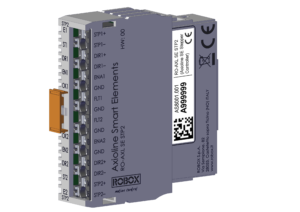

AS8001.001

Control module for two stepper motor drivers

Main features:

  • Each of the two channels feature:
    • 2 differential lines to control step and direction (5V line driver in accordance with EIA-422 up to 2.5MHz)
    • 1 output line to enable the driver (0-5V)
    • 1 input line to read the drive state (0~0.5V if drive is enabled 2~24V or open circuit in case of drive fault)
    • step division function to increase the step resolution up to 50 MSteps/sec
    • possibility of operation according to DSP402 profile in synchronous or asynchronous mode
    • possibility of operation in simplified synchronous manufacturer mode
    • IP20
