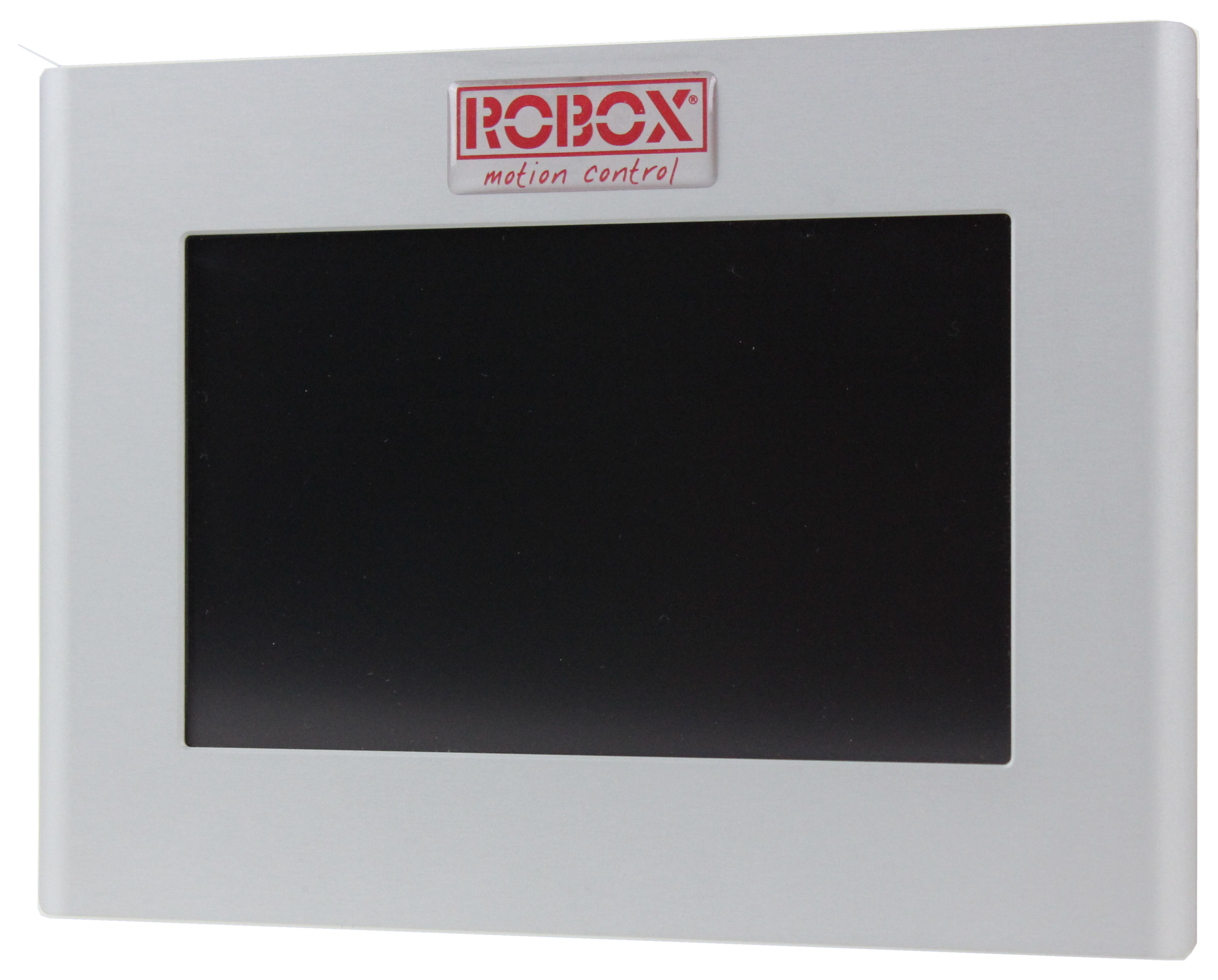

RHMI 5,7 | AS6011.001

Colour, touch screen terminal 5,7″ with integrated supervision/remote servicing software

MAIN TECHNICAL DATA:

  • Display LCD TFT 5,7″ 4:3 VGA, 640X480 256K colours, backlight LED 500cd/m2 touch screen
  • CPU ARM Cortex A8 1 GHz fanless
  • Dynamic ram 512 Mbyte DDR3-800
  • Removable 1 GB SD card hosting the application software
  • 256 MB NAND internal flash hosting the operating system
  • 2GB internal eMMC (Solid State Disk) hosting the system software
  • # 2 USB ports
  • # 1 RS232/422/485 serial port
  • Possibility to connect to an external keyboard/mouse
  • # 1 Ethernet interface 100 Mbits/s
  • # 1 Ethernet interface 10/100 Mbits/s
  • Supplied from the 24VDC
  • Size: mm 175x145x45 weight kg. 0,9
  • Microsoft Windows Embedded Compact 7 Pro (C7P)
  • RTM run-time software for the execution of RDT projects
  • REMOTE SERVICE software via VPN
  • User friendly configurator
Icon

Instructions for RHMI VPN connection 632.33 KB 22 downloads

...
Icon

Instructions fo USB drive maintenance 488.96 KB 11 downloads

...
Icon

Instructions for RHMI upgrading 669.85 KB 12 downloads

...

    This post is also available in: Italian
