CPU P2020 | AS5023.041

Freescale Power PC P2020 based CPU

The main features are:

  • Freescale Power PC P2020 microprocessor (1.2GHz dual-core)

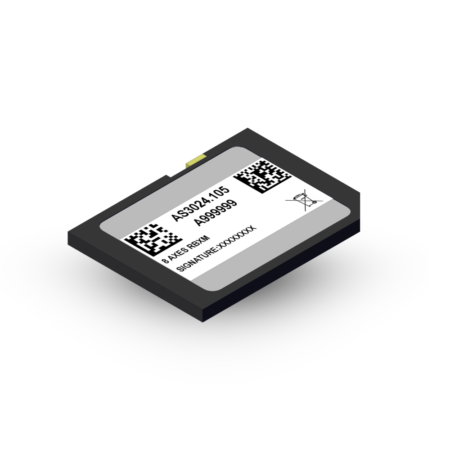

  • Removable SD card (450 Mbytes) for operating system and user’s program storage.
  • 512 Mbyte dynamic memory
  • 128 magnetic retentive ram
  • # 2 RS232 serial channels (Robox BCC/31, DF1) for general purposes
  • # 2 RS422/485 serial channels (Robox BCC/31, DF1) for general purposes
  • # 1 RS422 channel interfacing the Robox programming devices and/or the remote operator’s interfaces Dispan/µVispan
  • # 3 Ethernet channels 1/100Mbits/s (CoE, SoE, EoE, TCP/IP, UDP, Modbus TCP, TFTP, Ethernet/IP, Robox BCC31/TCP)
  • Intrinsic safety watch dog relay (ZH1/457)
  • Display monitoring the CPU status
  • Remote service /li] [li]Real-time clock calendar
  • External connectors provided
  • OPC Server and ActiveX available
Icon

Wiring schematics IU5023_041 217.72 KB 7 downloads

...
Icon

Wiring schematics IU5023_041 206.57 KB 6 downloads

...
