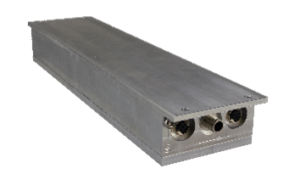

Rectangular metal electronic device with connectors.

RHAM Module | AS3009.013

Magnet detection device

Main features:

  • Detection of presence and position of the magnet on the ground using a 16×4 matrix of Hall sensors
  • Local calculation of the magnet’s position with precision up to +/- 0.1mm
  • Communication with the Robox motion controller via EtherCAT
  • Robust aluminum case with IP67 protection rating
  • External dimensions: 360x90x48 mm – Weight: 1,5 Kg

Product variant

RHAM Module | AS3009.313

Magnet detection device with integrated gyroscope

Icon

User instructions 2.92 MB 34 downloads

...
Icon

AGV'S MANUAL FOR BEGINNERS 2.01 MB 32 downloads

...
Icon

STEP for mechanical CAD 36.00 KB 0 downloads

...
Icon

DWG for electrical CAD 36.00 KB 0 downloads

...
Icon

ESI file for EtherCAT net 487.54 KB 1 downloads
