RBXM | RBXM

Modular motion controller
It is housed in a double Europe rack, completed with mother board and power supply, housing up to 7 boards besides the CPU G2 or P2020.

The main features are:

  • Width mm. 270
  • Height mm. 265.9
  • Depth mm. 243.8
  • Besides the CPU a variety of interface boards are available, allowing the operator to customize the RBXM to his machine
  • The boards are supplied with external connectors
Icon

User's manual MAN_08008 1.09 MB 14 downloads

...
Icon

User's manual MAN_97004_5_E 165.20 KB 2 downloads

...
Icon

Wiring schematics IU5023_031 217.72 KB 5 downloads

...
Icon

Wiring schematics IU5023_031 217.72 KB 4 downloads

...
Icon

Wiring schematics IU5023_041 206.57 KB 2 downloads

...

    Examples

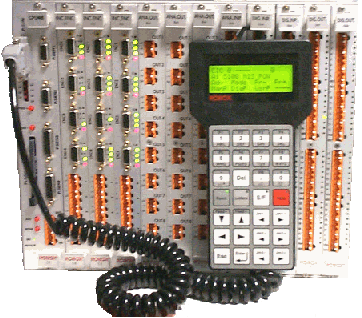

    RBXM connected to the DISPAN

    Example of DISPAN connection to the RBXM modular controller.

    The DISPAN is connected through an RS422 cable.

    As the RBXM does not install a display, the DISPAN allows the user to accede to information on the machine (alarms, axes position, etc.) when a PC is not connected to the RBXM.

    Rack:

    • RIOR 7
