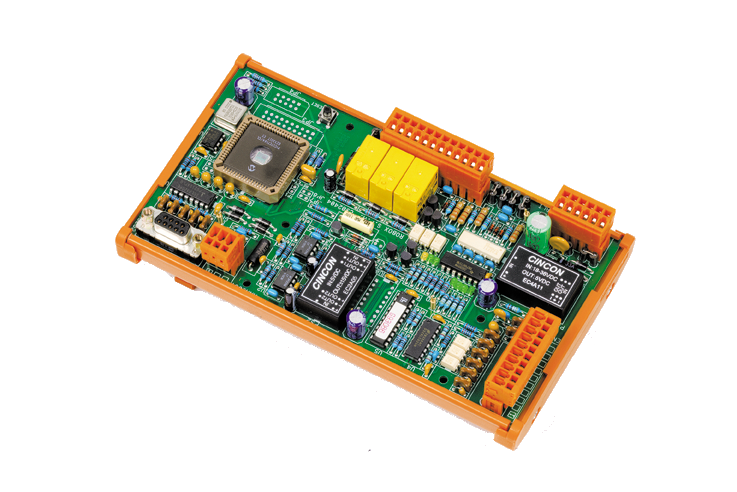

RPM PIC | AS7014.001

It allows a slave axis phasing with a master axis, through the following information:
Master info: digital input each cycle, encoder read-out
Slave info: digital input each cycle
The slave is controlled through an analog reference (0 -10 Volt 10 bit).

The main features are:

  • PIC Microchip 17C756 microcontroller, 32 MHz
  • #1 incremental encoder input, RS422 line driver +5VDC
  • #1 analog output 0-10 Volt 10 bit
  • #3 relay outputs
  • #4 opto-coupled digital inputs, positive logic + 24VDC
  • #1 RS232 serial channel for communication with RDE (Robox Development Environment) for parameter setting
  • Power supply +24V DC
  • Installed in 35mm DIN guide
  • External measures: mm 195x110x70 – weight kg. 0.365
Icon

RPMPIC user manual. MAN02009 163.23 KB 0 downloads

...
