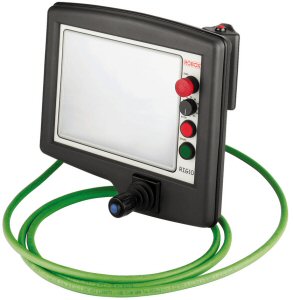

RIG10 | AS6010.131

Hand-held programming terminal, with 10″ touch screen, emergency and dead-man push-button, start/stop push-buttons, feed-rate selector and 3-axis proportional joy-stick for the manual movement and position acknowledgement. It is therefore ideal to program robots.

10″ colour TFT touch screen display 800X600
512 Mbytes compact flash dedicated to the operating system
512 Mbytes compact flash dedicated to the user’s application software
3-axis analog joy-stick without sliding contacts (15 million operations expected) with push button for axes position storage
feed-rate override selector
2-position mono-stable push button for operator’s presence
emergency push-button
start/stop push-buttons
connection cable max 10m
hang-up book
external meas mm 310x140x270, weight kg 3.00
