RID20-E |AS9202.014

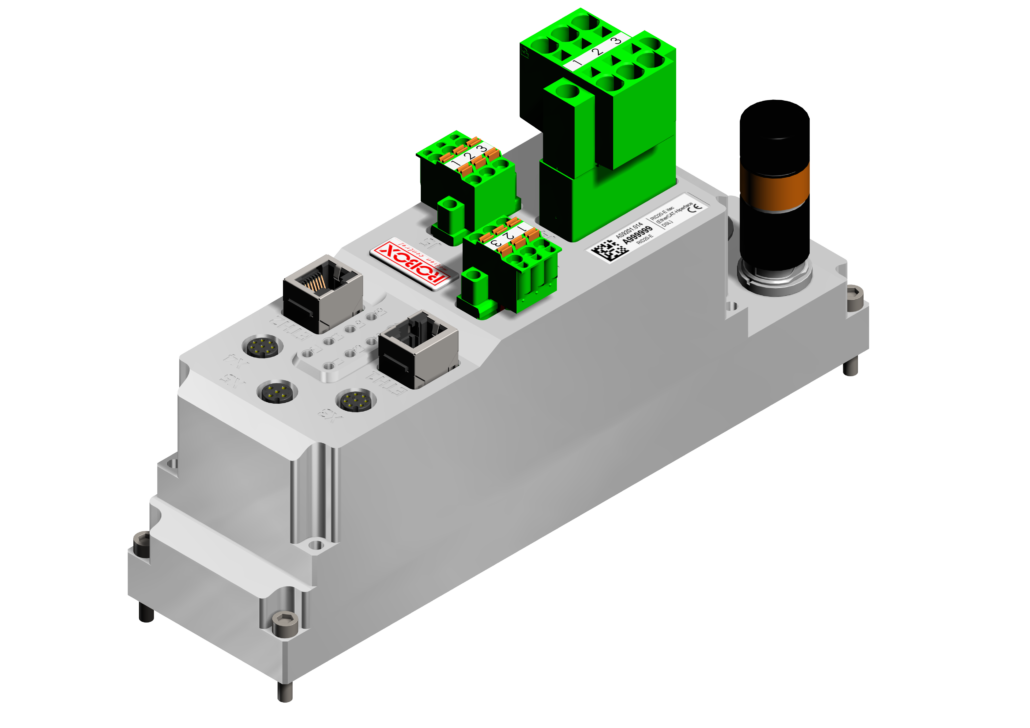

Servo Drive for installation near the motor in NEARBY IP20 version.
The connections to the electrical cabinet are realized with standard connectors/cables (daisy chain).
The only one connection to the motor is realized with ITEC connectors serie of TE Connectivity.

Extremely compact dimensions: 220mm*60mm*116mm 1.5kg in NEAR-BY version

Current, speed and position loops closed by the RID20-E
Up to 800 DC power supply
Up to 2KW
Auxiliary power supply 18-36 VDC
Strong capability to support high temperatures and vibrations

Available transducer interfaces

AS9202.014 NEAR-BY version with 1 motor connector:

  • Hiperface-DSL

Safety Torque-Off function (STO) selectable on the single drive or on all the drives in the chain
Internal 24VDC holding brake control driving up to 0.75A
Internal accelerometer for vibration analysis (3 Axes)

Diagnostics leds

Main Fieldbus Communication:

  • EtherCAT (CoE) (FoE)

Local communication (service)

  • RS232 interface

I/O’s configuration 1:

  • 1 digital input, IEC61131-2 type 1, 24VDC (with debounce filter)
  • 1 digital output, 24VDC (up to 340mA), short-circuit and overcurrent protected
  • 1 output/power-supply line (24VDC, up to 390mA), short-circuit and overcurrent protected, can be cycled as slow digital output

I/O’s configuration 2:

  • 2 digital inputs, IEC61131-2 type 1, 24VDC (with debounce filter)
  • 1 output/power-supply line (24VDC, up to 390mA), short-circuit and overcurrent protected, can be cycled as slow digital output

I/O’s configuration 3:

  • IO-LINK master (pending)
  • 1 output/power-supply line (24VDC, up to 390mA), short-circuit and overcurrent protected

Connectors:

  • The connections to the electrical cabinet are realized with standard wires/connectors.
  • The connections to the motor are realized with ITEC connectors.
    (Available transducers: Hiperface DSL)
