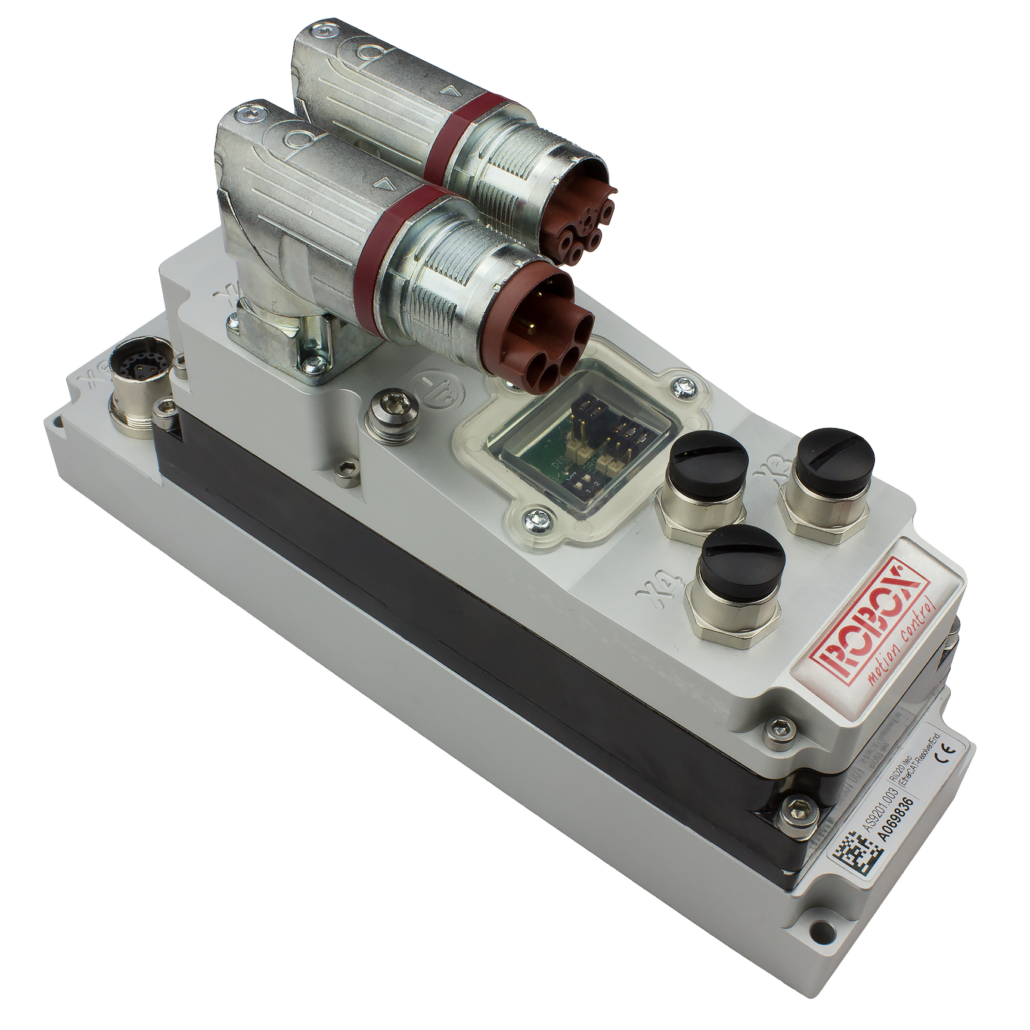

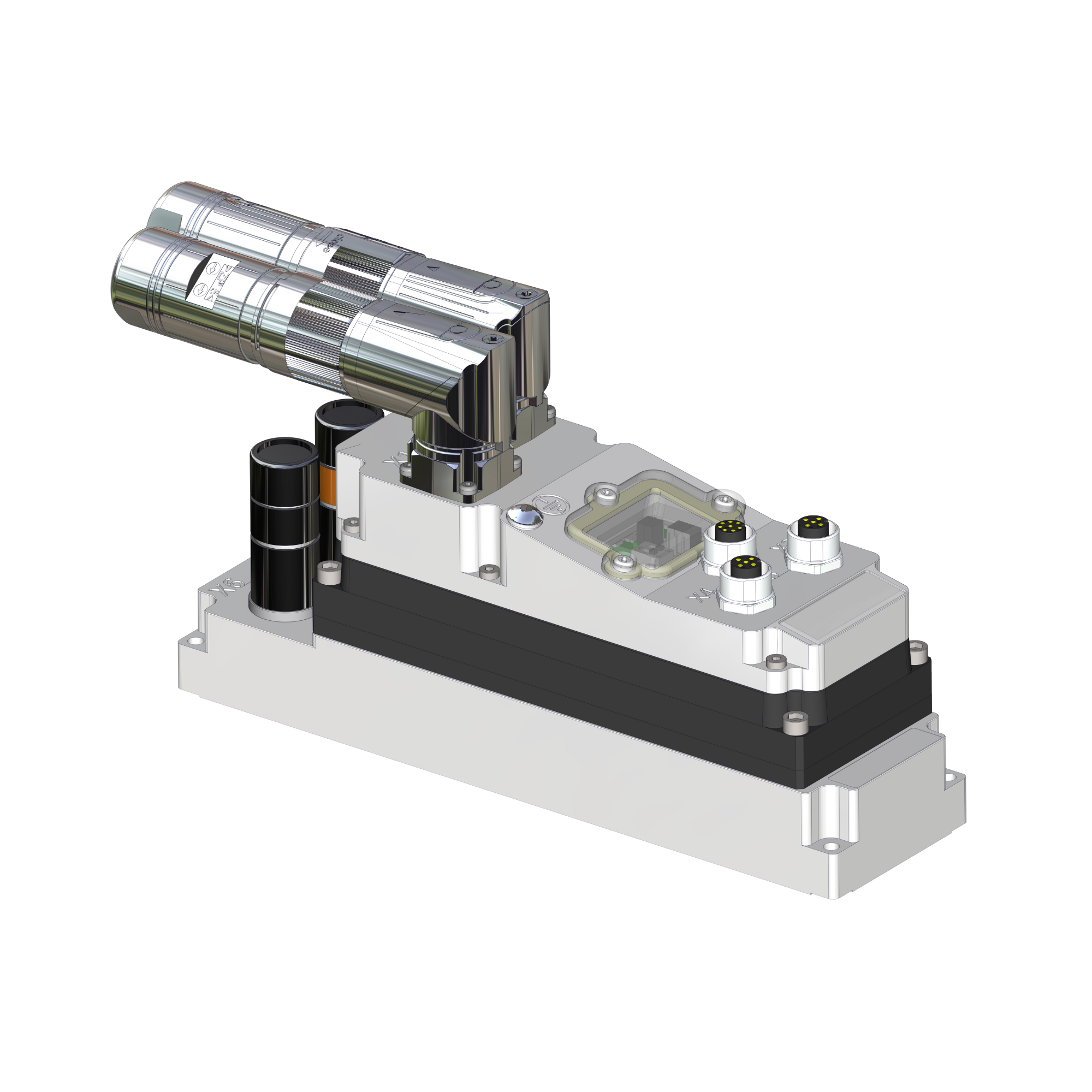

Drive for installation nearby the motor.
Extremely compact dimensions: 220mm*60mm*135mm 2.15kg
Current, speed and position loops closed by the SPIMD20
Up to 750 DC power supply
Up to 2KW
Auxiliary power supply 18-48 VDC
Strong capability to support high temperatures and vibrations
Available transducer interfaces:
- ENDAT 2.1/2.2 (rotary/linear encoders)
- SanyoDenki (PA035-017BM001 singleturn)
- TamagawaSeiki (TS5668N26)
Safety Torque-Off function (STO) selectable on the single drive or on all the drives in the chain
Internal 24VDC holding brake control driving up to 0.7A
Internal accelerometer for vibration analysis
- EtherCAT (CoE) (FoE) or CANopen DSP402
- RS232 interface
- 2 digital, PNP, 24VDC opto-coupled inputs (with capture functions)
- 2 digital, PNP, 24VDC opto-coupled outputs. Max current for single output 600 mA (by external supply), max total current for all outputs (by internal supply) 100 mA.
- 2 hybrid connectors, with rotatable angled receptacle, for power supply (750 VDC and auxiliary 18-48 VDC), fieldbus and torque off (STO) signals (common for all the drives in the chain)
- 2 M12 connectors, for input and output digital signals
- 1 M12 connector, for serial interface and torque off signals (for the single drive)
- 2 ITEC connectors for motor and transducer cables
Wirings instructions Highflex hybrid cable cavo1spimd (RID20-->RID20) 269.72 KB 10 downloads...
Wirings instructions hybrid cable cavo1spimd_term (terminator connector) 146.30 KB 5 downloads...
Wirings instructions Highflex hybrid cable cavo2spimd (Power Supply-->RID20) 147.91 KB 5 downloads...
Wirings instructions Highflex hybrid cable cavo3spimd (IP20 --> IP20) 53.56 KB 3 downloads...
